Tips

Note:

The support information on this page may differ by region in terms of availability and timing.
*Japan : Support is scheduled for soon. API Specs for Provisioning is not supported. API Specs for Management is planned to be supported.
*China : Not supported

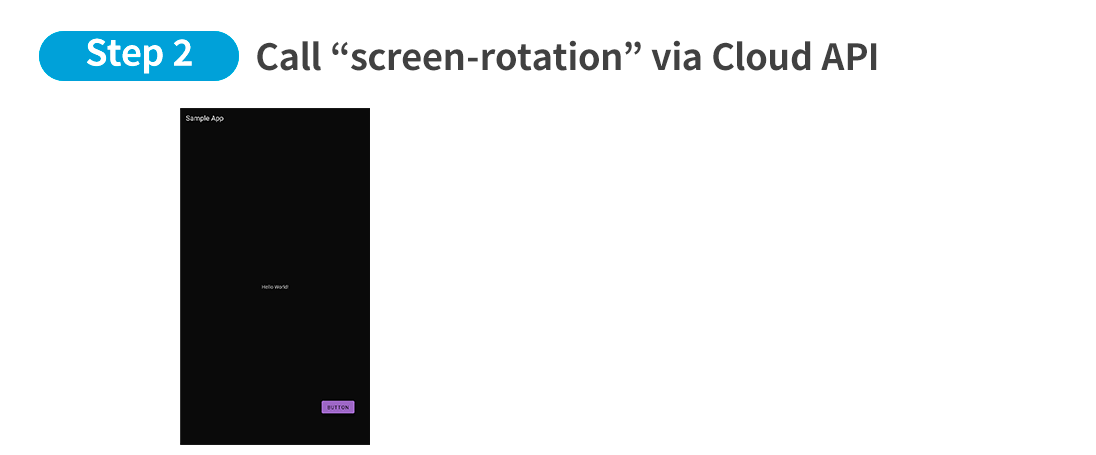

Screen Rotation API

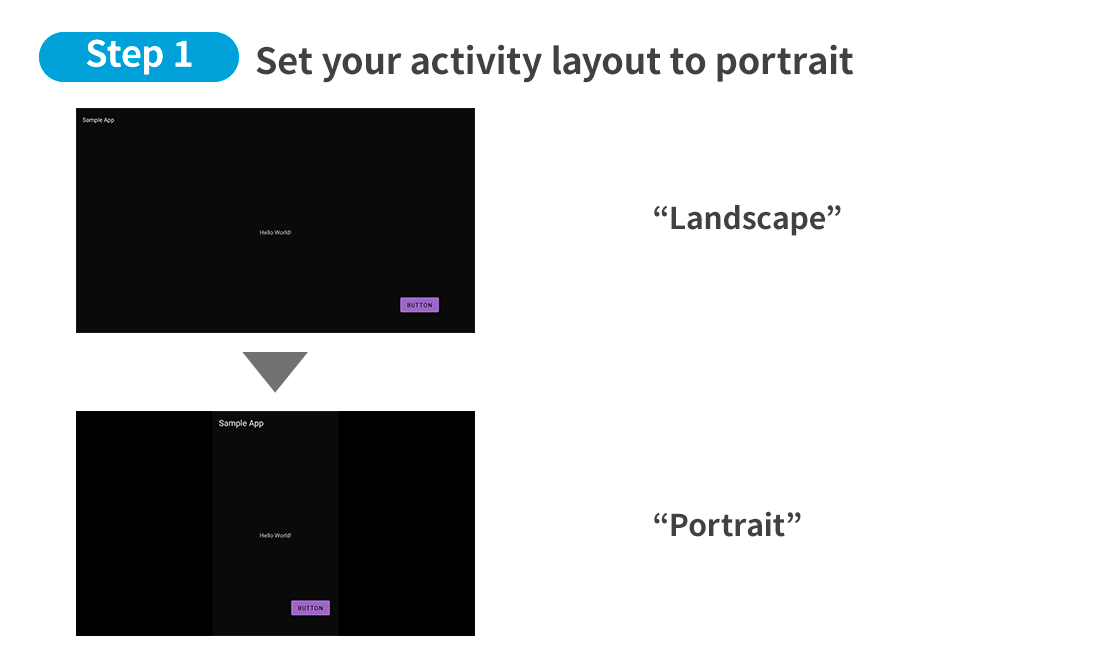

・To rotate an app, you need to call the API and implement rotation on the app side. Please implement according to the guidelines below.

Manifest case:

AndroidManifest.xml ​

<activity​
	android:name=“.MainActivity”​
	android:screenOrientation=“portrait”>​

Java case:

Activity.java​

setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_PORTRAIT);

Note:

The following models of BRAVIA do not yet support “screen-rotation”.
    - BZ40J (100 inches)
    - BZ53L/50L/30L (98 inches)

The videos must be played on TextureView in portrait mode.
    · TextureView can be rotated. WebView uses TextureView
    · SurfaceView cannot be rotated

Screenshot API

・The API screenshot calls the callback functions onPause() and onResume() in your app.

If you are handling video pause in the onPause() callback method

Phenomenon
✓   The video playback will pause for about 0.1-0.5 seconds.
Countermeasure
✓   Implement video pause handling in the onStop() instead of onPause() in your app.

- Sample (Java)​

@Override​
protected void onStop() {​
    super.onStop();​
    if (videoView.isPlaying()) {​
        videoView.pause();​
    }​
}

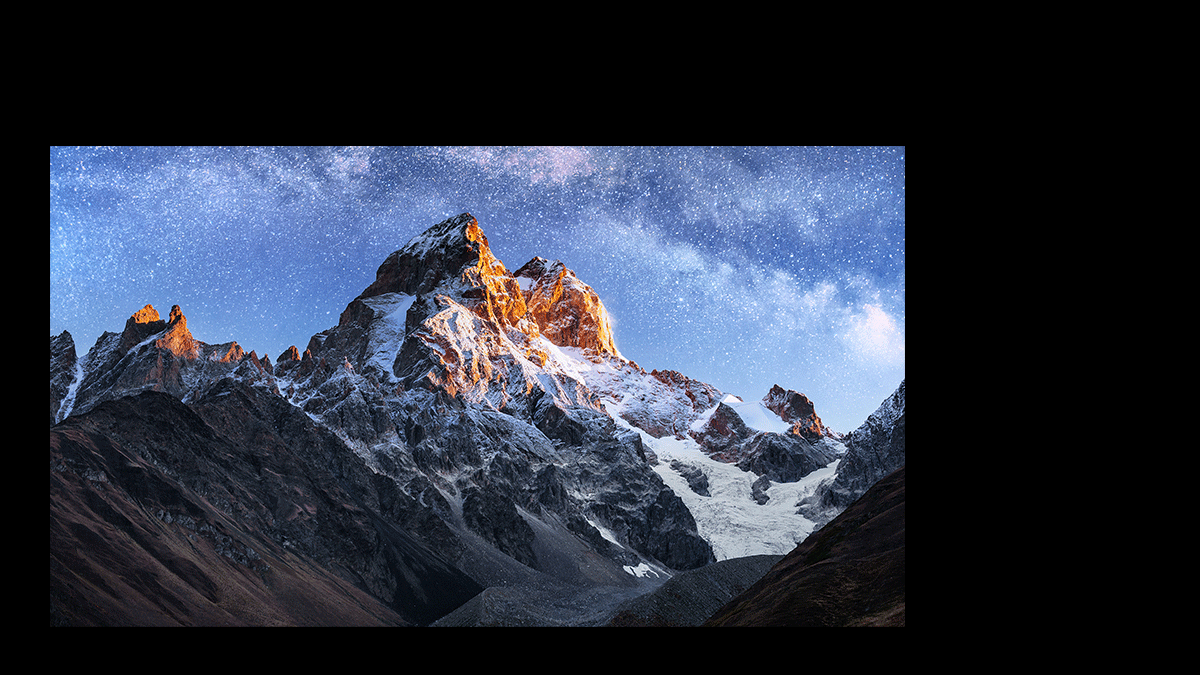

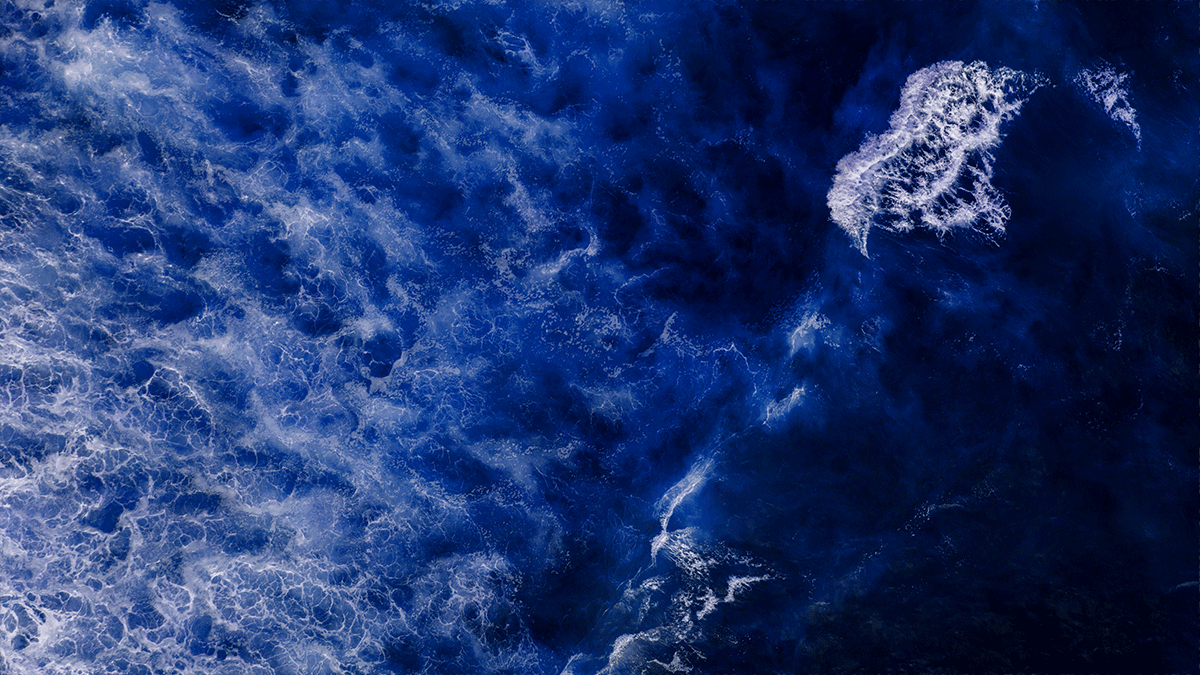

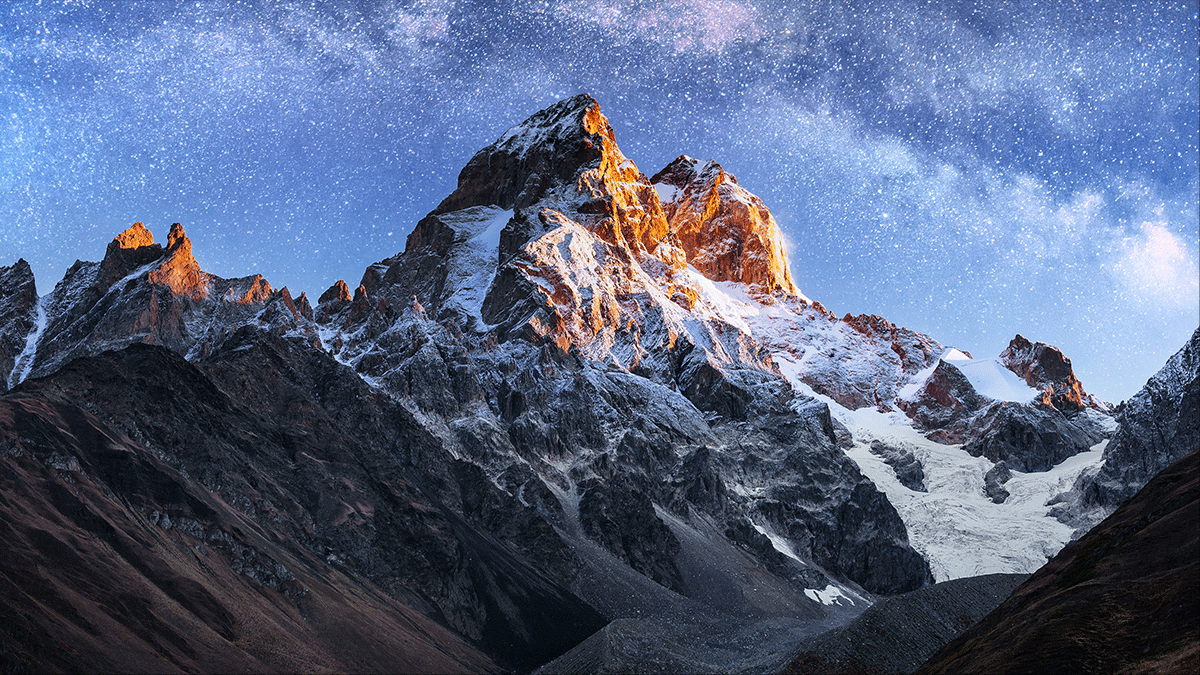

・Screenshot results depend on the playback application and input source. See specifications below.

Screen state			Actual screen						Result of GET /screenshot						Result of GET /screenshot ?plane=video (Video plane)

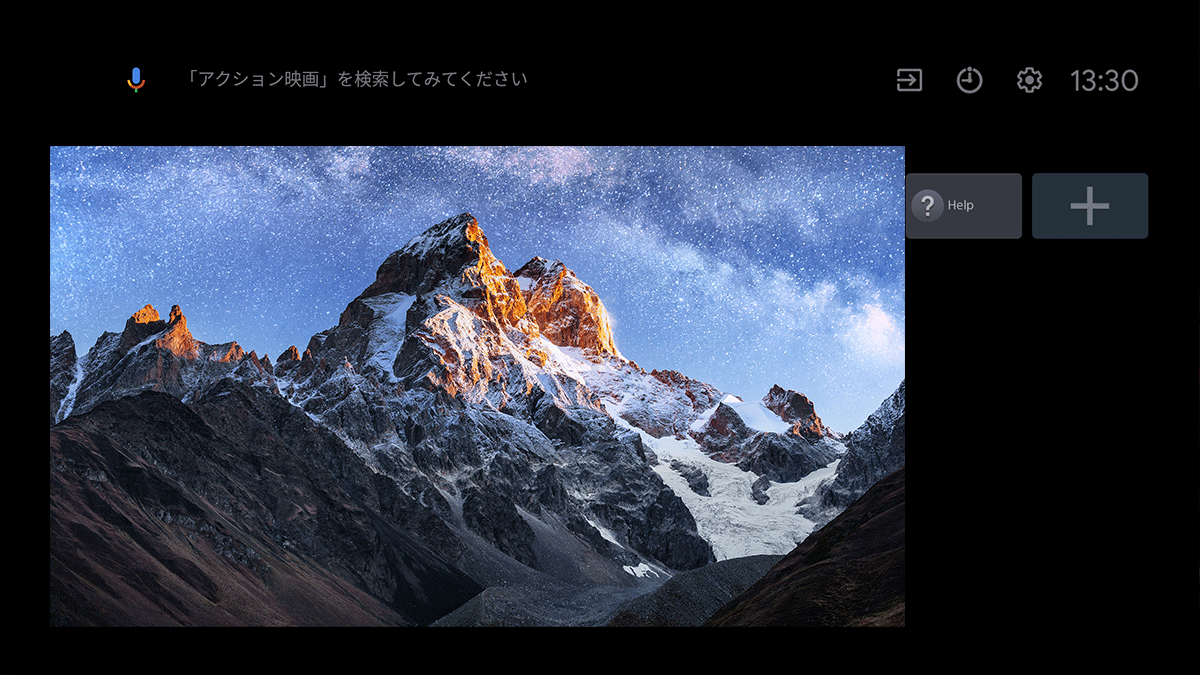

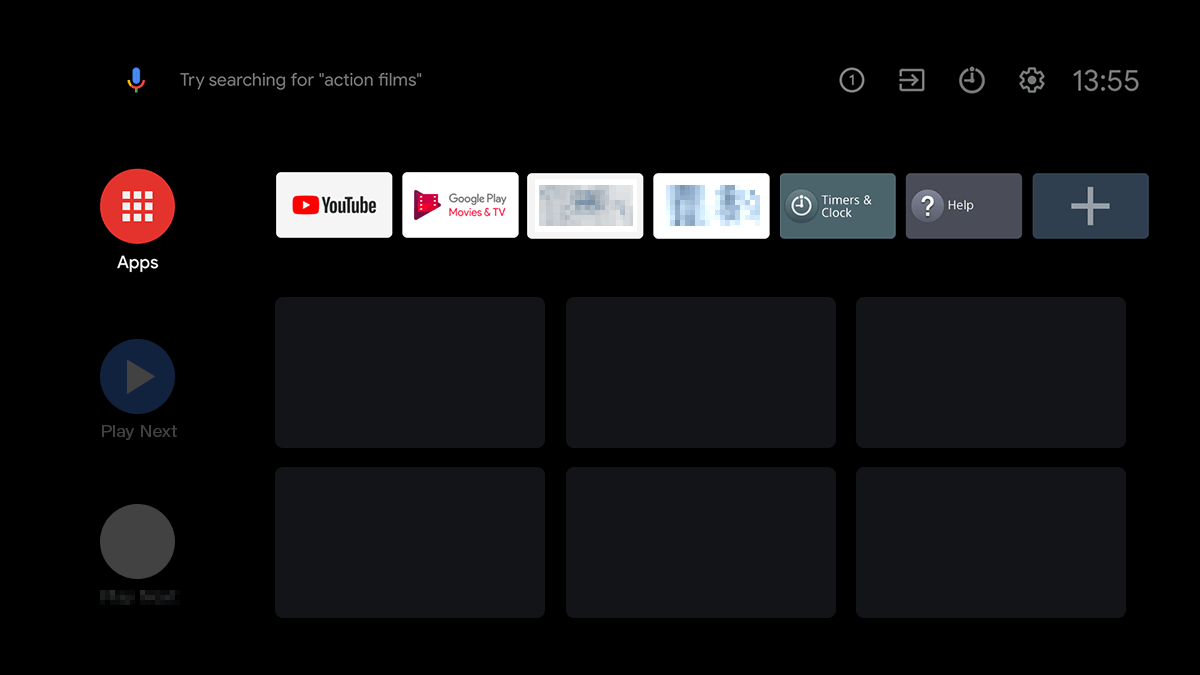

Home UI									Same as actual screen						Not Supported
Setting UI									Same as actual screen						Not Supported
Player App	Without Tunnel mode(*1)								Same as actual screen						Not Supported
	With Tunnel mode(*1)								XR model(*2) UI cannot be captured Others Same as actual screen						XR model(*2) UI cannot be captured Others Same as actual screen

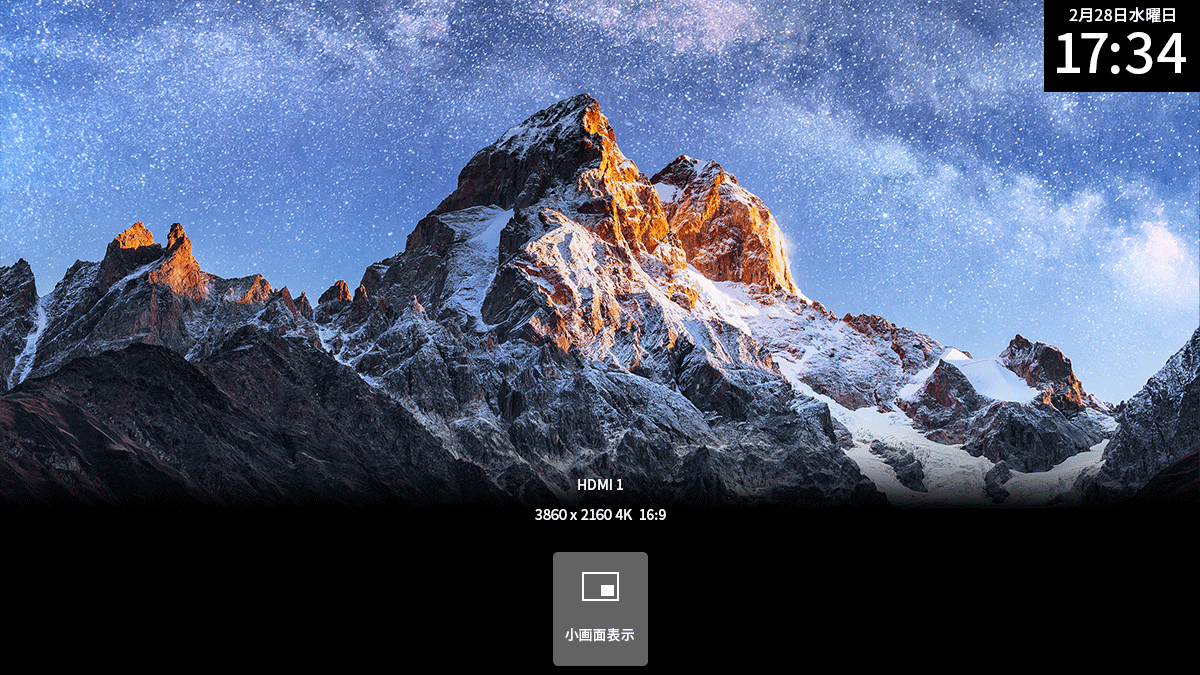

HDMI (Bravia firmware PKG6.7612 or later only)									XR model(*2) UI cannot be captured Others Same as actual screen						XR model(*2) UI cannot be captured Others Same as actual screen

Note:

The resolution of the screenshot in the red frame is 320x180.
The resolution of the other screenshots is 1920x1080.

(*1) Tunnel mode: https://source.android.com/docs/devices/tv/multimedia-tunneling?hl=en external link
(*2) XR model
- BZ40J (100 inches)
- BZ53L/50L/30L (98 inches)

HDMI Input	Screenshot results
	Not XR model		XR model(*3)​ Picture quality mode is set to “Game” or “Graphics”		XR model(*3)​ Picture quality mode is set to other than “Game” or “Graphics”
4K
Less than 4K​

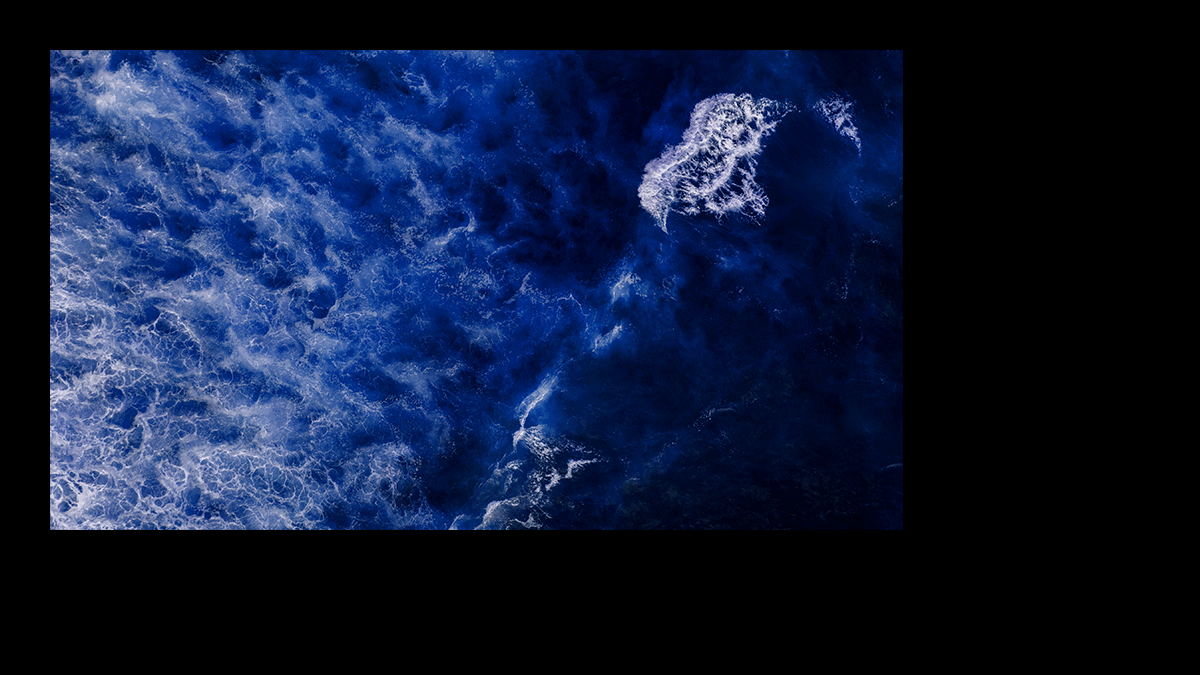

Decimated

Note:

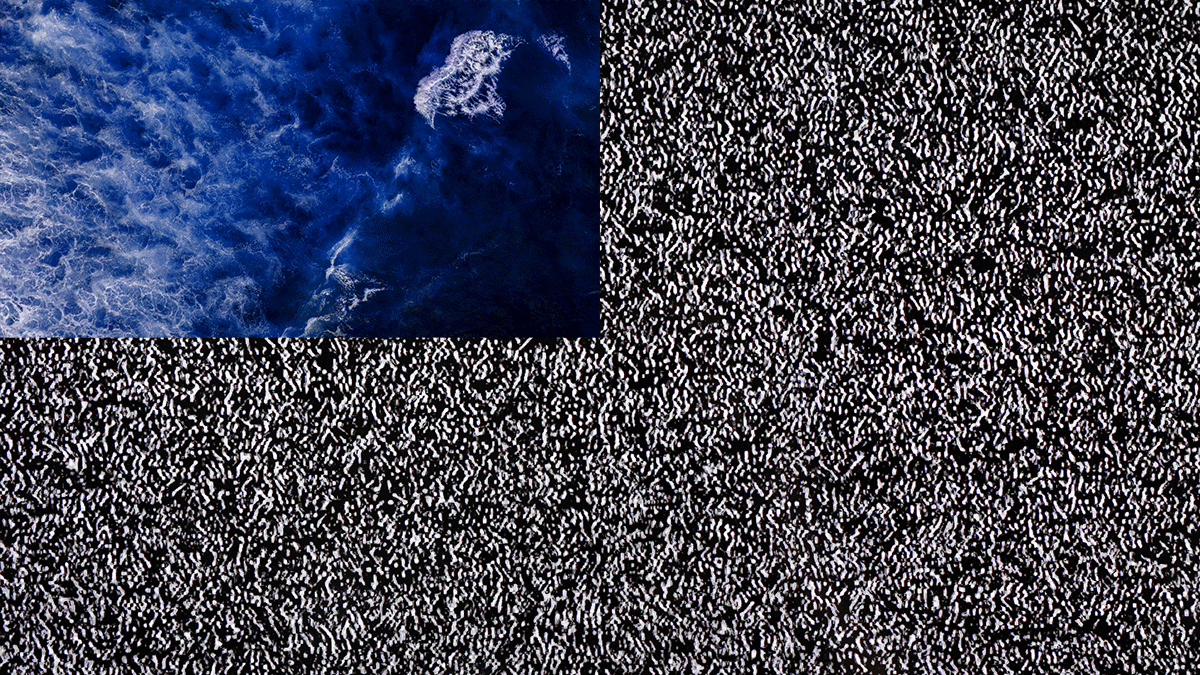

For HDMI input, if the BRAVIA display is an XR model (*3) and its Picture Quality Mode is set to anything other than “Game” or “Graphics,” the following behavior will occur:

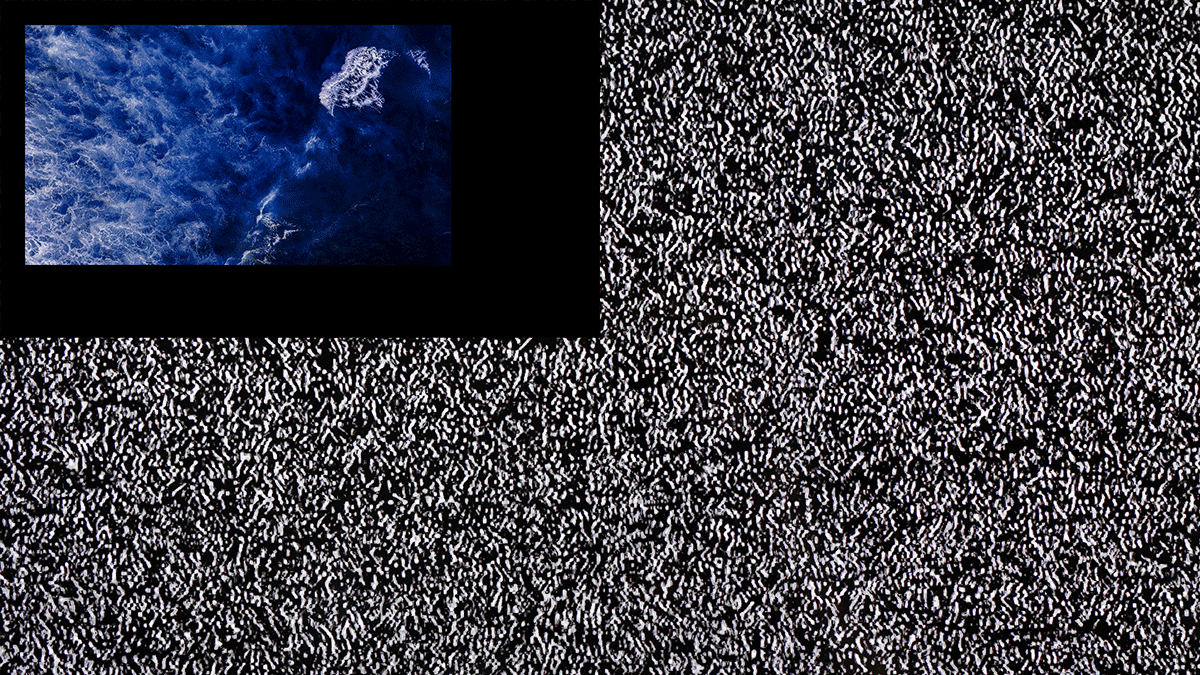

Video content less than 4K resolution and decimated video will be captured in the upper-left 1/4 area of the screen.

(*3) XR model
- BZ40J (100 inches)
- BZ53L/50L/30L (98 inches)

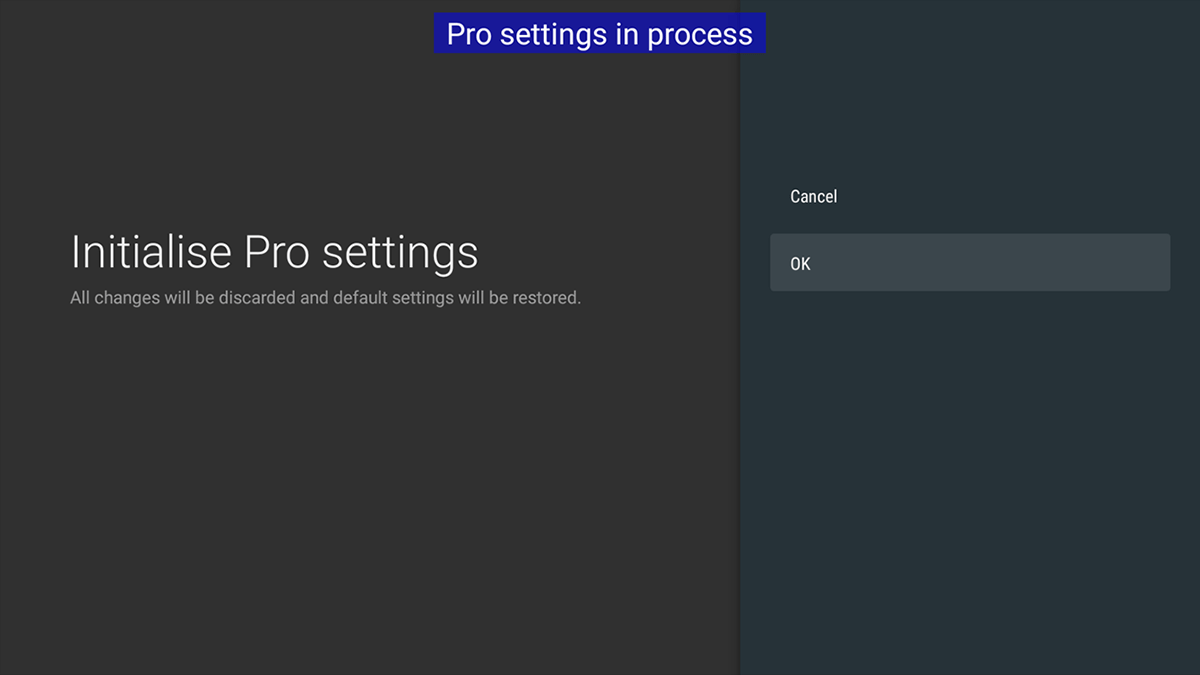

On Screen Display while processing Cloud API

• If you use the following Cloud APIs while BRAVIA is turned on, “Please Wait” will be displayed on screen and you will not be able to operate the BRAVIA for a few seconds while the API is being processed.        >/devices/{deviceId}/apk-install/requests
         >/devices/{deviceId}/apk-uninstall/requests
         >/devices/{deviceId}/pro-mode/requests
         >/devices/{deviceId}/reboot/requests
         >/devices/{deviceId}/settings-export/requests
         >/devices/{deviceId}/settings-import/requests
         >/{deviceId}/system-software-update/requests

API Call Limitations​

• The recommended limit for API calls is no more than 50 calls per second per partner.
• Exceeding this limit may overload the server’s processing capacity, resulting in an error.
• If an error occurs, wait briefly before retrying your request.
