One step setting
BZ40P / BZ35P / BZ30P Info Coming Soon
Other models only
One step setting allows you to apply optimized picture quality and function settings all at once by selecting the appropriate item from the list. This eliminates individual adjustments through “Monitor settings” and “Pro settings,” streamlining setup during initial installation or when configuring multiple displays. Display settings can be optimized at the touch of a button for common scenarios like conference rooms and signage.
One Step Setting List
In the “Pro settings mode” environment, select “One step setting” from the [Home] app to see the list. Specify an item from the list to apply the setting.
When configuring settings in [One step setting], some items only apply to inputs with HDMI connections. Please review the content and prepare the necessary connections in advance as needed.
*The GUI is subject to change without prior notice.
*Depending on the Android TV OS, the displayed items and procedures may vary.
Meeting Room
This setting is configured for viewing various types of content, from documents to videos. It also includes settings to display images full-screen with the aspect ratio matched to the input format from a PC.
| Settings Item | Monitor Settings | Pro Settings | Setting Value | Description |
|---|---|---|---|---|
| Light sensor | ● | OFF | Disables automatic luminance adjustment of the monitor according to the surrounding brightness. | |
| Picture mode | ● | Graphics | Applied only to HDMI inputs connected at the time of setting. | |
| Auto picture mode | ● | OFF | Applied only to HDMI inputs connected at the time of setting. | |
| PC input optimization | ● | Auto | Applied to all HDMI inputs. Images are displayed full-screen with the aspect ratio matched to the PC input format. | |
| RS232C control | ● | Via serial port | Enables control of the monitor via Serial control (RS232C control) | |
| Simple IP control | ● | ON | Enables control of the monitor via Simple IP control | |
| Authentication | ● | None (For Pro mode only) | [None] is valid only when operating in “Pro mode” environment. In “Normal mode” environment, it is automatically converted to [Normal]. | |
| Energy saver-Power saving | ● | OFF | Disables the setting that dims the monitor brightness and enters power saving mode after a fixed period of inactivity. |
Digital Signage
You can select from the following three types of [One step setting] for digital signage. The basic settings are the same, but the monitor characteristics differ depending on the [Picture mode].
Vivid Signage
This type enhances the visibility of content and displays it vividly in order to convey information effectively in public facilities such as stations and airports.

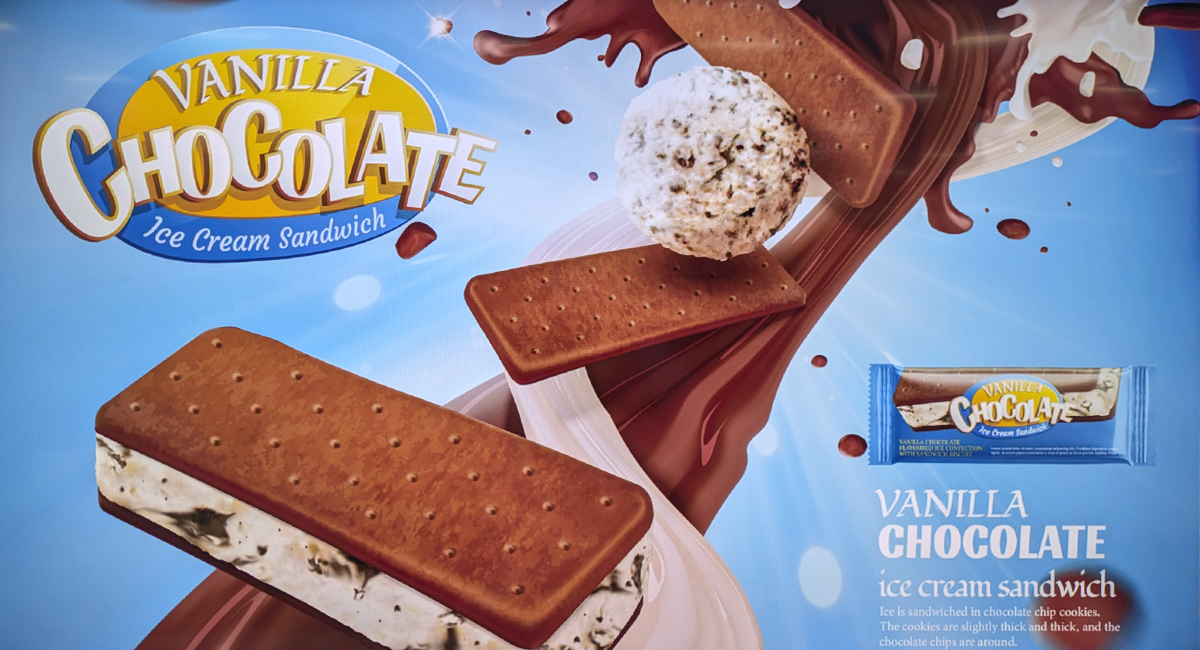

Natural Signage
This type is suitable for art museums and galleries where smooth gradations of color and brightness are to be reproduced naturally and where an emphasis is placed on realistic expressions.
Graphics Signage
This type is suitable for medical or professional video production where you want to faithfully reproduce the gradation (gradation) of color and brightness of the input video signal and place importance on accurate display.
| Settings Item | Monitor Settings | Pro Settings | Setting Value | Description |
|---|---|---|---|---|
| Light sensor | ● | OFF | Disables the function that automatically adjusts the monitor brightness according to the surrounding brightness. | |
| Picture mode | ● | Standard | Applied only to HDMI inputs connected at the time of setting. Also applied to Apps (Video) and Apps. | |
| Auto picture mode | ● | OFF | Applied only to HDMI inputs connected at the time of setting. | |
| Brightness | ● | MAX | Applied only to HDMI inputs connected at the time of setting. Also applied to Apps (Video) and Apps. | |
| RS232C control | ● | Via serial port | Enables control of the monitor via Serial control (RS232C control) | |
| Simple IP control | ● | ON | Enables control of the monitor via Simple IP control | |
| Authentication | ● | None | [None] is valid only when operating in “Pro mode” environment. In “Normal mode” environment, it is automatically converted to [Normal]. | |
| Turn off display after | ● | Never | Disables the setting that dims the monitor brightness and enters power saving mode after a period of inactivity. | |
| Power saving | ● | OFF | Disables the setting that automatically adjusts monitor brightness and panel operation to reduce power consumption. | |
| No signal power off | ● | OFF | Disables the setting that automatically turns off the monitor power when there is no input signal for 5 minutes. | |
| Operational response(LED indicator) | ● | OFF | Disables the LED lamp operation on the unit during monitor operation. |
| Settings Item | Monitor Settings | Pro Settings | Setting Value | Description |
|---|---|---|---|---|
| Light sensor | ● | OFF | Disables the function that automatically adjusts the monitor brightness according to the surrounding brightness. | |
| Picture mode | ● | Custom | Applied only to HDMI inputs connected at the time of setting. Also applied to Apps (Video) and Apps. | |
| Auto picture mode | ● | OFF | Applied only to HDMI inputs connected at the time of setting. | |
| Brightness | ● | Max | Applied only to HDMI inputs connected at the time of setting. Also applied to Apps (Video) and Apps. | |
| RS232C control | ● | Via serial port | Enables control of the monitor via Serial control (RS232C control) | |
| Simple IP control | ● | ON | Enables control of the monitor via Simple IP control | |
| Authentication | ● | None | [None] is valid only when operating in “Pro mode” environment. In “Normal mode” environment, it is automatically converted to [Normal]. | |
| Turn off display after | ● | Never | Disables the setting that dims the monitor brightness and enters power saving mode when the monitor is not operated for a certain period of time. | |
| Power saving | ● | OFF | Disables the setting that automatically adjusts monitor brightness and panel operation to reduce power consumption. | |
| No signal power off | ● | OFF | Disables the setting that automatically turns off the monitor power when there is no input signal for 5 minutes. | |
| Operational response(LED indicator) | ● | OFF | Disables the LED lamp operation on the unit during monitor operation. |
| Settings Item | Monitor Settings | Pro Settings | Setting Value | Description |
|---|---|---|---|---|
| Light sensor | ● | OFF | Disables the function that automatically adjusts the monitor brightness according to the surrounding brightness. | |
| Picture mode | ● | Graphics | Applied only to HDMI inputs connected at the time of setting. Also applied to Apps (Video) and Apps. | |
| Auto picture mode | ● | OFF | Applied only to HDMI inputs connected at the time of setting. | |
| Brightness | ● | MAX | Applied only to HDMI inputs connected at the time of setting. Also applied to Apps (Video) and Apps. | |
| RS232C control | ● | Via serial port | Enables control of the monitor via Serial control (RS232C control) | |
| Simple IP control | ● | ON | Enables control of the monitor via Simple IP control | |
| Authentication | ● | None | [None] is valid only when operating in “Pro mode” environment. In “Normal mode” environment, it is automatically converted to [Normal]. | |
| Turn off display after | ● | Never | Disables the setting that dims the monitor brightness and enters power saving mode when the monitor is not operated for a certain period of time. | |
| Power saving | ● | OFF | Disables the setting that automatically adjusts monitor brightness and panel operation to reduce power consumption. | |
| No signal power off | ● | OFF | Disables the setting that automatically turns off the monitor power when there is no input signal for 5 minutes. | |
| Operational response(LED indicator) | ● | OFF | Disables the LED lamp operation on the unit during monitor operation. |
Demo
This type is ideal if you want the content to be easy to read and visually engaging in a well-lit area, such as a storefront, and you want the content to be as attractive as possible.
| Settings Item | Monitor Settings | Pro Settings | Setting Value | Description |
|---|---|---|---|---|
| Light sensor | ● | OFF | Disables the function that automatically adjusts the monitor brightness according to the surrounding brightness. | |
| Picture mode | ● | Vivid | Applied only to HDMI inputs connected at the time of setting. Also applied to Apps (Video) and Apps. | |
| Auto picture mode | ● | OFF | Applied only to HDMI inputs connected at the time of setting. | |
| RS232C control | ● | Via serial port | Enables control of the monitor via Serial control (RS232C control) | |
| Simple IP control | ● | ON | Enables control of the monitor via Simple IP control | |
| Authentication | ● | None | [None] is valid only when operating in “Pro mode” environment. In “Normal mode” environment, it is automatically converted to [Normal]. | |
| Turn off display after | ● | Never | Disables the setting that dims the monitor brightness and enters power saving mode when the monitor is not operated for a certain period of time. | |
| Power saving | ● | OFF | Disables the setting that automatically adjusts monitor brightness and panel operation to reduce power consumption. | |
| No signal power off | ● | OFF | Disables the setting that automatically turns off the monitor power when there is no input signal for 5 minutes. |
